Semi-Automatic Folding Labeling Machine / Roll Labeling Machine

Equipment Name: Semi-Automatic Folding Labeling Machine / Roll Labeling Machine

Equipment Model: DZ1501000 / JB150400

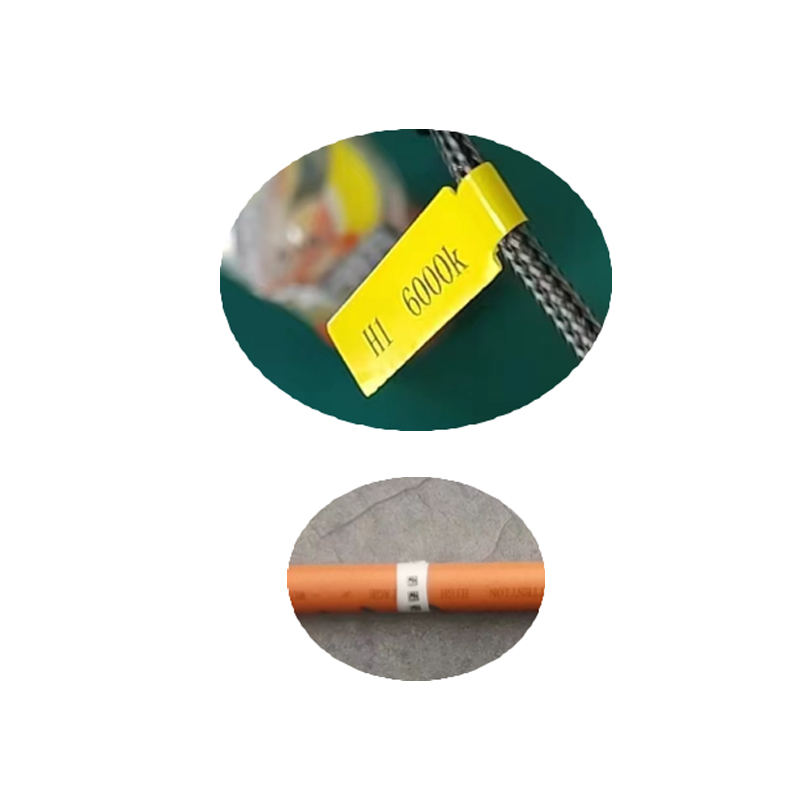

Function: Automatic labeling for 3mm-15mm round wires, flat wires, loose wires, double-stranded wires and multi-stranded wires

Applicable Label Range: Width 5-40mm, length 20-100mm

Applicable Label Roll Diameter: 240mm

Maximum Label Roll Inner Diameter: 76mm

Labeling Accuracy: ±0.2mm

Labeling Speed: 1000-1500PCS/h and above (depending on label size and manual operation speed)

Power Supply: Single-phase AC 220V 50HZ 120W

Operating Environment Temperature: +5～+40℃

Relative Humidity: (20～90)%RH

Air Supply Required: 0.5MPa (5Kgf/cm²)

Total Weight: 85kg

Overall Dimensions: L680×W600×H980mm

Applicable Power Supply: 220V/50HZ

Power: 0.25W

Optional: With automatic label printing function
