E/U/O Type Automatic Tube-Threading Terminal Crimping Machine

Equipment Name: E/U/O Type Automatic Tube-Threading Terminal Crimping Machine

Equipment Model: CGYJ-600120300

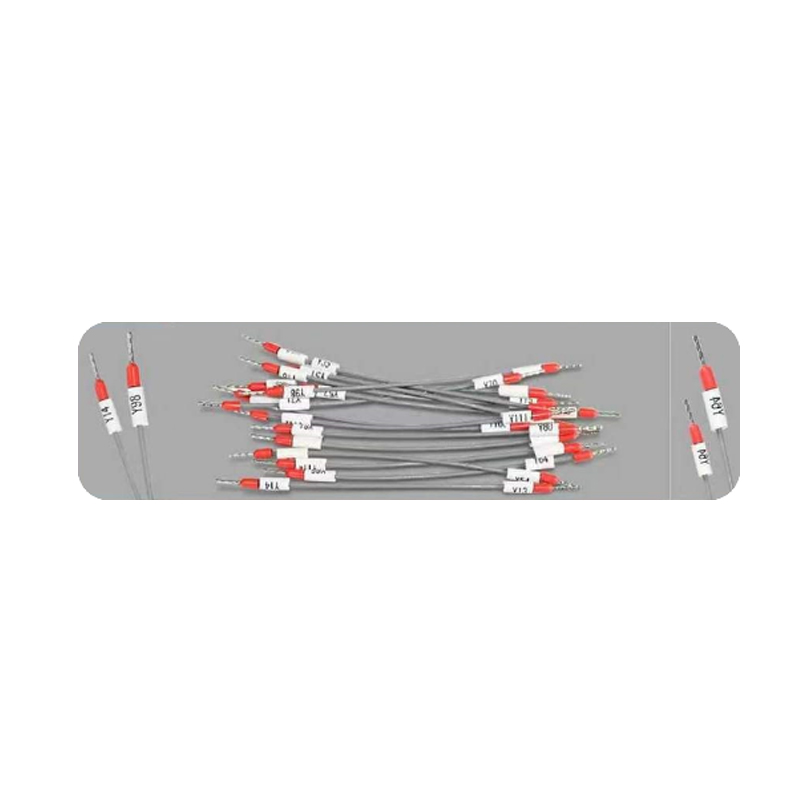

Function: For wire harness processes: threading number tubes, stripping, and crimping terminals

Crimping Range: 0.3-6mm² (maximum crimping length 12mm)

Crimping Shapes: Four-sided, double-sided crimping

Stripping Length: Minimum sheath stripping range for sheathed wires: 65mm

Capacity: 600pcs/h

Dimensions and Weight: L640mm×W660mm×H520mm, 70KG

Control Method: Touch screen and ARM mainboard

Wire Clamping Device: Motor-driven, with clamping force control program

Crimping Device: Servo motor-driven, with crimping force control program

Number Tube Length: 10mm-30mm

Number Tube Direction: Free setting of number tube orientation (forward/reverse)

Detection Device: Terminal supply detection for material shortage

Power Supply: AC220V, 50/60Hz, 400W

Additional Features 1: Can store 100 sets of cable crimping data

Additional Features 2: Uses servo motor with reduction gear and screw drive; clamping force and crimping force controlled by program, enabling four-sided and double-sided crimping for standard terminals

Additional Features 3: Can quickly and accurately complete a series of processes: tube-threading, rotary stripping, wire twisting, terminal insertion, and crimping, improving production efficiency and product quality
