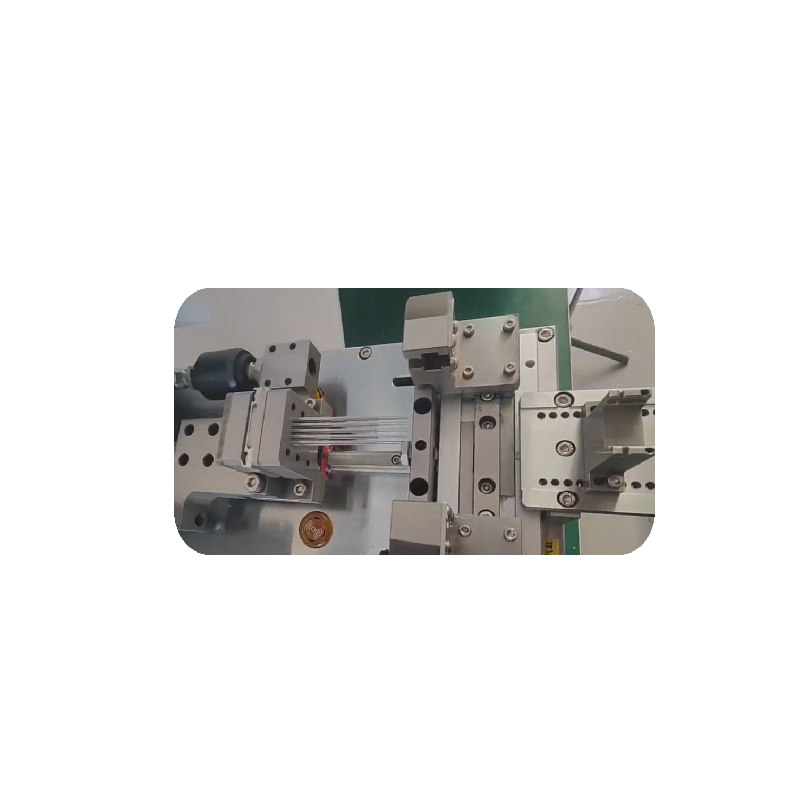

Semi-Automatic Multi-Hole Rubber Grommet Threading Machine

Equipment Name: Semi-Automatic Multi-Hole Rubber Grommet Threading Machine

Equipment Model: DK-300200

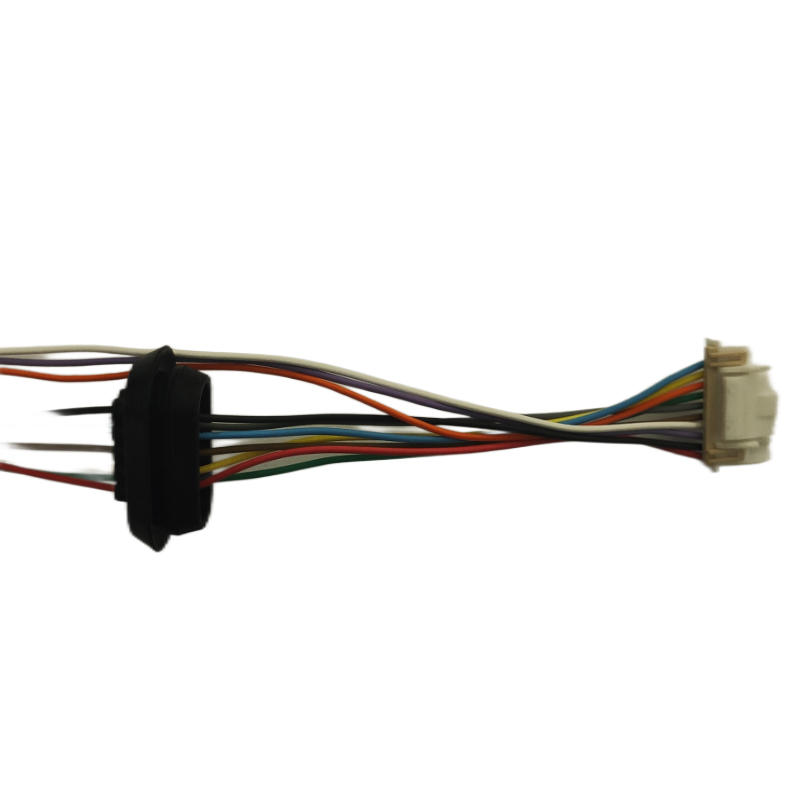

Function: Mostly used for waterproof threading of multi-hole rubber grommets in automotive lamp wire harnesses

Power Supply: 220V 50HZ

Power: 200W

Air Supply: 5-8MPa

Weight: 45KG

Dimensions: L1020×W440×H340mm

Positioning Requirement: The distance between the plastic shell and rubber grommet shall not be less than 70mm (non-standard customizable)

Technical Parameters:

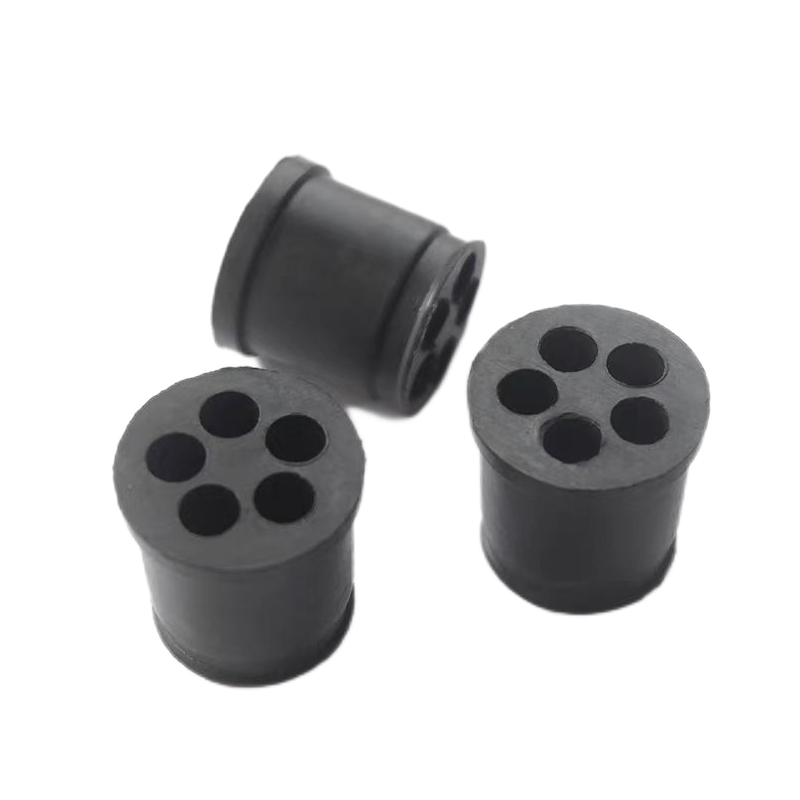

Maximum Rubber Grommet Size: Diameter 30mm, thickness 20mm; square 30×30×20mm

Capacity Efficiency: Average 5 seconds per hole (slight differences based on wire length and plastic shell positioning)

Needle assembly changeover: 3 minutes; tube assembly changeover: 3 minutes; claw assembly changeover: 9 minutes

High production efficiency: Saves 2-5 laborers and reduces manual labor intensity

High equipment compatibility: Enables threading of various rubber grommets via changeover, with 15-minute changeover time

High safety performance: Multi-step dual-hand start operation

One-key switching between single and double rubber grommet functions (customizable)
