Automatic Computerized Wire Stripping Machine (Sheathed Wire Model)

Equipment Name: Automatic Computerized Wire Stripping Machine (Sheathed Wire Model)

Equipment Model: CX-802500

Function: All-in-one machine for stripping the outer sheath and inner core of lamp wires, power cords, flat power cords, and USB data cables

Overall Dimensions: L460mm * W460mm * H380mm

Weight: 38kg

Display Method: 4.3-inch touch screen (Chinese-English switchable)

Switching Power Supply: AC175V－250V, 50/60HZ

Power: 80W—480W

Cutting Length: 0.1mm—99999.9mm

Stripping Length: Stripping head: 0.1－250mm; Stripping tail: 0.1－70mm

Conduit Diameter: Multi-core sheathed wire outer diameter within 1-8mm

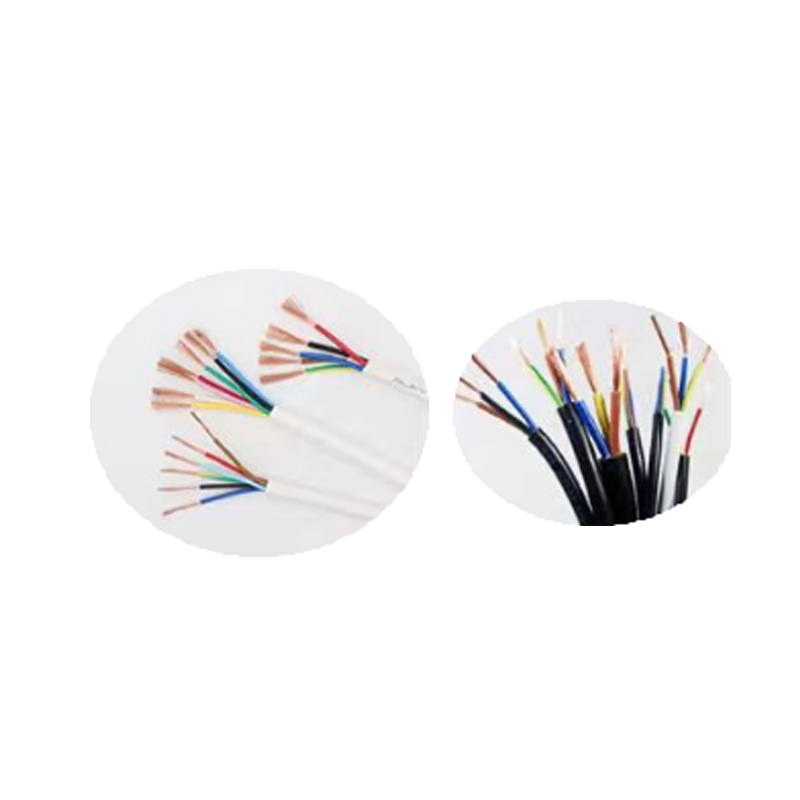

Suitable Wires: 2-8 core multi-core sheathed wires, PVC wires, rubber wires and other power cables

Cutter Material: Tungsten steel / Imported high-speed steel

Driving Method: Four-wheel drive, roller wire feeding

Stripping Efficiency: 600—1000 pieces (varies according to actual wire type)

Wire Pressure Adjustment: Manual pulley adjustment

Pulse Equivalent: Error within 0.05mm per meter of wire

Blade Motor Precision: Silent hybrid stepper motor, 0.1mm per step

Additional Functions: Automatic wire feeding, automatic wire outlet, and timed start

Additional Description: Equipped with the latest 64-bit intelligent control system, Chinese-English switchable LCD display, and touch screen operation. Can store 100 sets of data for instant recall, featuring high efficiency and convenience. High-end configuration ensures high precision, zero length error, and high output.
