Stripping and Shielding Mesh Cutting Integrated Machine

  • All-in-one automation: Integrates outer insulation stripping, shielding mesh cutting, and inner insulation stripping in one pass.
  • Specialized for new energy: Handles 3-70m㎡ harnesses (charging piles, braided signal cables) with high precision.
  • Customizable cutting range (5-100mm) + 3kw power, ensuring efficient mass production.
  • Compact footprint (L950×W1550×H1300mm) for easy production line integration.

For accurate pricing or product detail inquiries, please contact us—we will reply within 12 hours.

Add to Quote

Product Description

Equipment Name: Stripping and Shielding Mesh Cutting Integrated Machine

Equipment Model: BPQG-7001000

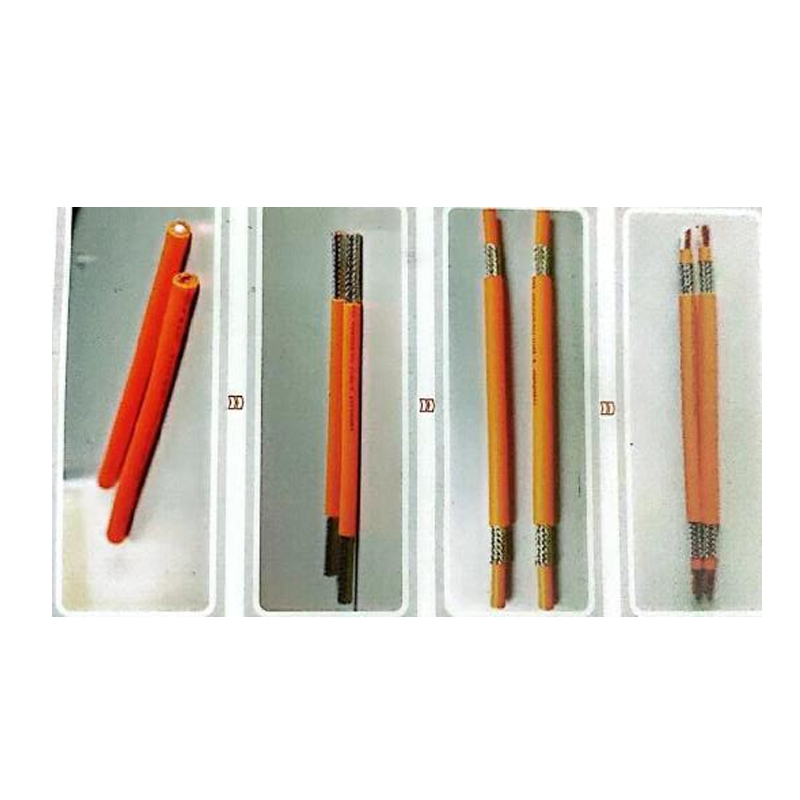

Function: Mainly used for cutting braided layers of new energy wire harnesses, charging pile wire harnesses, braided signal cables, etc.

Power Supply: AC220V, 50/60Hz

Power: 3kw

Air Supply: 0.6-0.8MPa

Overall Dimensions: L950×W1550×H1300mm

Processing Range: 3-70m㎡

Shielding Mesh Cutting Range: 5-100mm (other lengths customizable)

Additional Description: An automated integrated machine combining three processes: outer insulation layer stripping, shielding mesh cutting, and inner insulation layer stripping. It features high efficiency and precision.
