Braiding Cutting Machine

Specialized for new energy: Ideal for cutting braided layers of vehicle/charging pile harnesses (70-120m㎡).
High precision cutting: Neat edges, no damage to inner insulation, no need to disperse braiding.
Two models available (70/120m㎡) with customizable braiding turning length (5-100mm).
Compact design (L440×W1200×H740mm) + 2kw power, easy to integrate into production lines.

For accurate pricing or product detail inquiries, please contact us—we will reply within 12 hours.

Add to Quote

Product Description

Equipment Name: Braiding Cutting Machine

Equipment Model: QBZ-7001000 / QBZ-12001000

Function: Mainly used for cutting and processing braided layers of new energy vehicle wire harnesses, charging pile wire harnesses, braided signal cables, etc.

Power Supply: AC220V, 50/60Hz

Power: 2kw

Air Supply: 0.5-0.8MPa

Overall Dimensions: L440×W1200×H740mm

Processing Range:

QBZ-7001000: 70m㎡

QBZ-12001000: 120m㎡

Braiding Turning Length: 5-100mm (other lengths customizable)

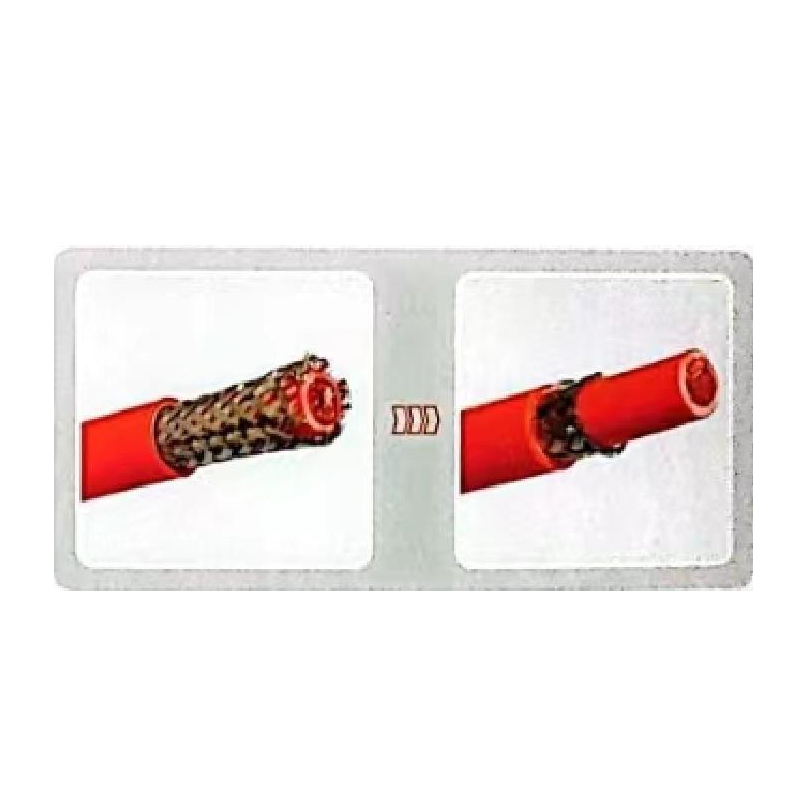

Additional Description: For new energy wires, it efficiently and accurately cuts the shielding mesh with neat edges. No need to disperse the braiding, and no impact on the inner insulation layer of the wire.
