Terminal Cross-Section Analyzer
Terminal Cross-Section Analyzer - Image 2

Terminal Cross-Section Analyzer

  • Comprehensive terminal analysis: crimp dimensions, burrs, compression ratio, etc.
  • Wide range: 0.01-70mm² (Ø0.10-10.00mm), 2800rpm cutting
  • Compact (L500×W350×H350mm, 30kg), 600W low power
  • Precise data for quality control of terminal crimping

For accurate pricing or product detail inquiries, please contact us—we will reply within 12 hours.

Add to Quote

Product Description

  • Equipment Name: Terminal Cross-Section Analyzer
  • Equipment Model: JMFXX-500

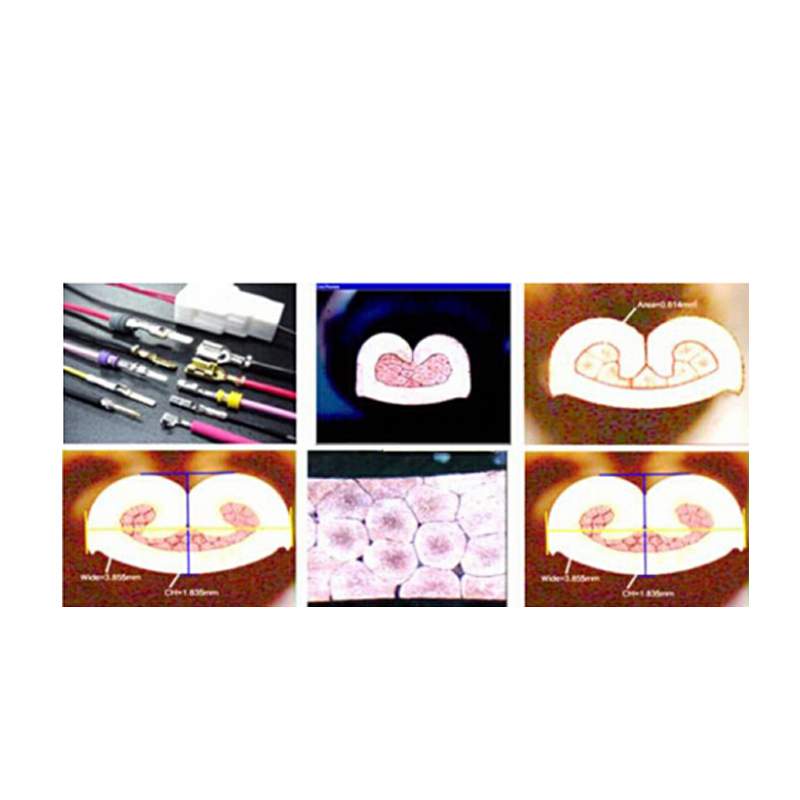

  • Function: Analyzes compression ratio, number of wire strands, crimp height, crimp width, cross-sectional area, support height, support angle, burr width, burr height, etc.
  • Power Supply: 230VAC, 50Hz, 600W
  • Weight: Approximately 30kg
  • Dimensions: L500mm×W350mm×H350mm
  • Cutting Module Range: 0.01mm² to 70.00mm² (Ø0.10mm – 10.00mm) with a rotation speed of 2800rpm
